SP 46-5 [15AC1905]
SP 46-5 [15AC1905]
Grundfos
Preço normal
€4.598,30 EUR
Preço normal
€6.569,00 EUR
Preço de saldo
€4.598,30 EUR
Preço unitário
/
por
Price excluding VAT
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha

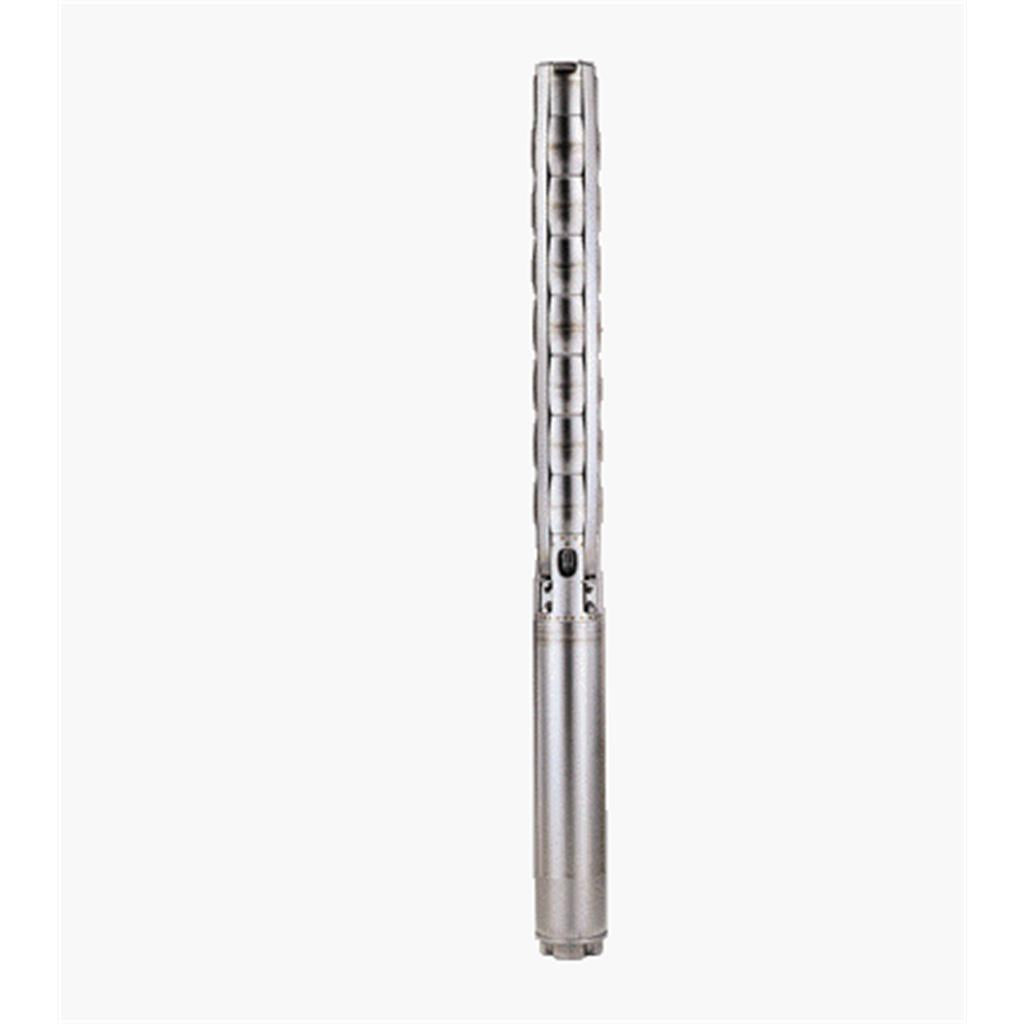

Bomba submersível para furos, adequada para o bombeamento de água limpa. Pode ser instalada na vertical ou na horizontal. Todos os componentes em aço são feitos de aço inoxidável de elevada qualidade, EN 1.4301 (AISI 304), que garante uma protecção elevada contra a corrosão. Esta bomba possui aprovação para água potável.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -15 .. 40 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |
| Pump speed on which pump data are based: | 2900 rpm |
| Rated flow: | 46 m³/h |
| Rated head: | 43 m |
| Approvals: | CE,EAC,UKCA,SEPRO,MOROCCO |
| Approvals for motor: | CE,EAC,C_UL_US_NSF372MOROCCO,UKCA,SEPRO |
| Approvals for drinking water: | ACS,DM174 |
| Curve tolerance: | ISO9906:2012 3B |
| Motor version: | T40 |
| Return valve: | YES |
| Materials: | |
| Pump: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Motor: | Stainless steel |
| EN 1.4301 | |
| Shaft seal: | HM/Ceramics |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Maximum operating pressure: | 60 bar |
| Maximum outlet pressure: | 6.8 bar |
| Type of connection: | Rp |
| Size of connection: | 3 inch |
| Motor diameter: | 4 inch |
| Minimum borehole diameter: | 150 mm |
| Electrical data: | |
| Motor type: | MS4000 |
| Motor flange design: | Grundfos |
| Rated power - P2: | 7.5 kW |
| Power (P2) required by pump: | 7.5 kW |
| Mains frequency: | 50 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Rated current: | 18.4-19.3-19.6 A |
| Starting current: | 470-480-490 % |
| Cos phi - power factor: | 0.83-0.77-0.72 |
| Rated speed: | 2830-2850-2860 rpm |
| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | Yes |
| Length of cable: | 1.7 m |
| Power cable type: | FLAT |
| Motor No: | 7C193512 |
| Windings: | Enameled |
| Others: | |
| Minimum efficiency index, MEI ≥: | 0.40 |
| Net weight: | 47.7 kg |
| Gross weight: | 53.1 kg |
| Shipping volume: | 0.068 m³ |
| Country of origin: | DK |
| Custom tariff no.: | 84137029 |
| Environmental approvals: | WEEE |
