Grundfos
Preço normal
€1.731,20 EUR
Preço normal
€2.164,00 EUR
Preço de saldo
€1.731,20 EUR
Preço unitário
/
por
Price excluding VAT
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha

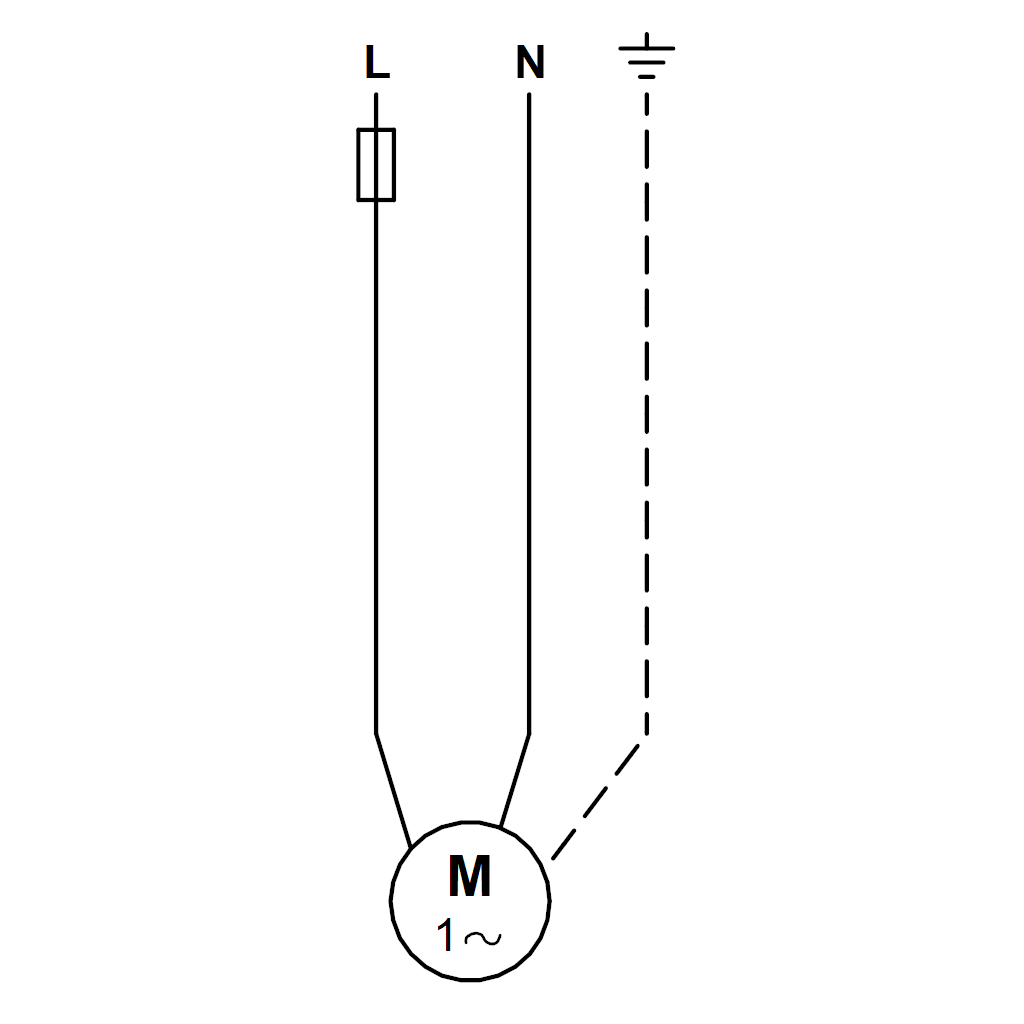

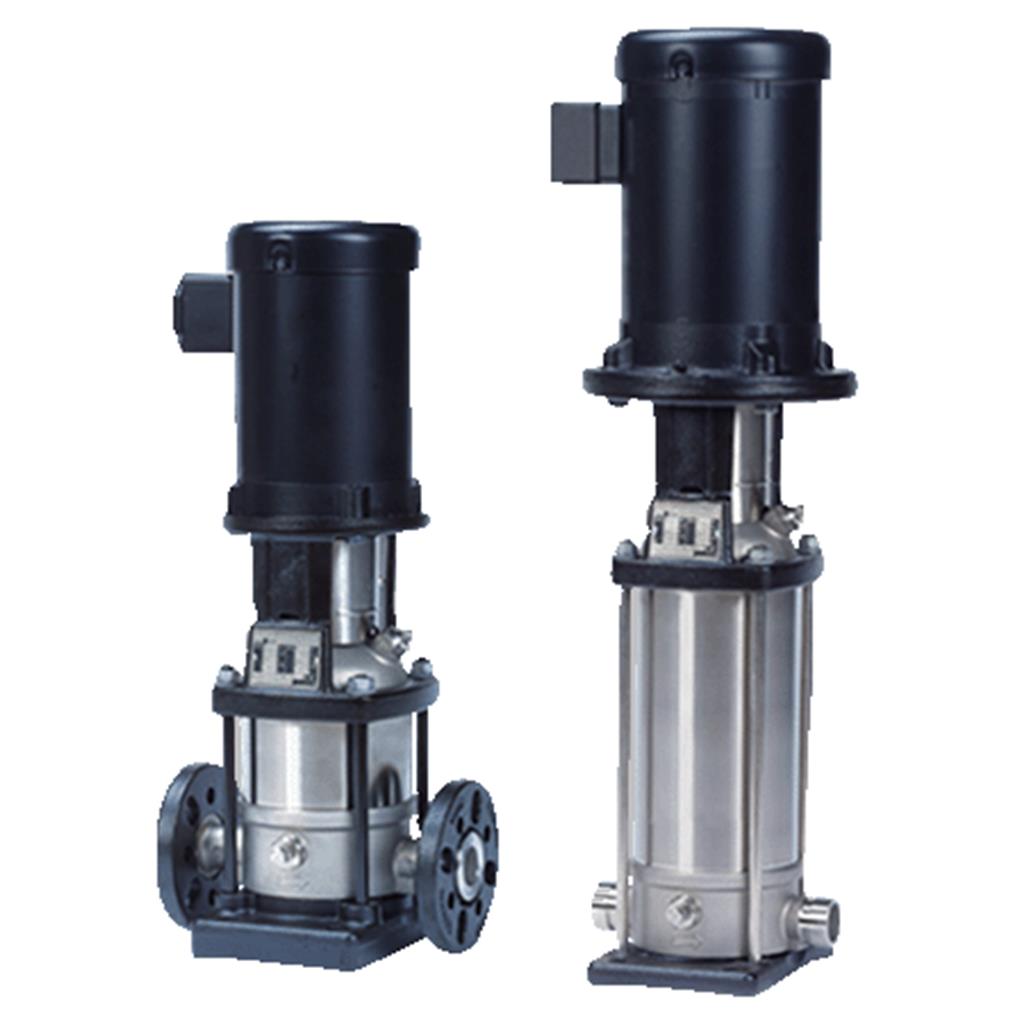

Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 120 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

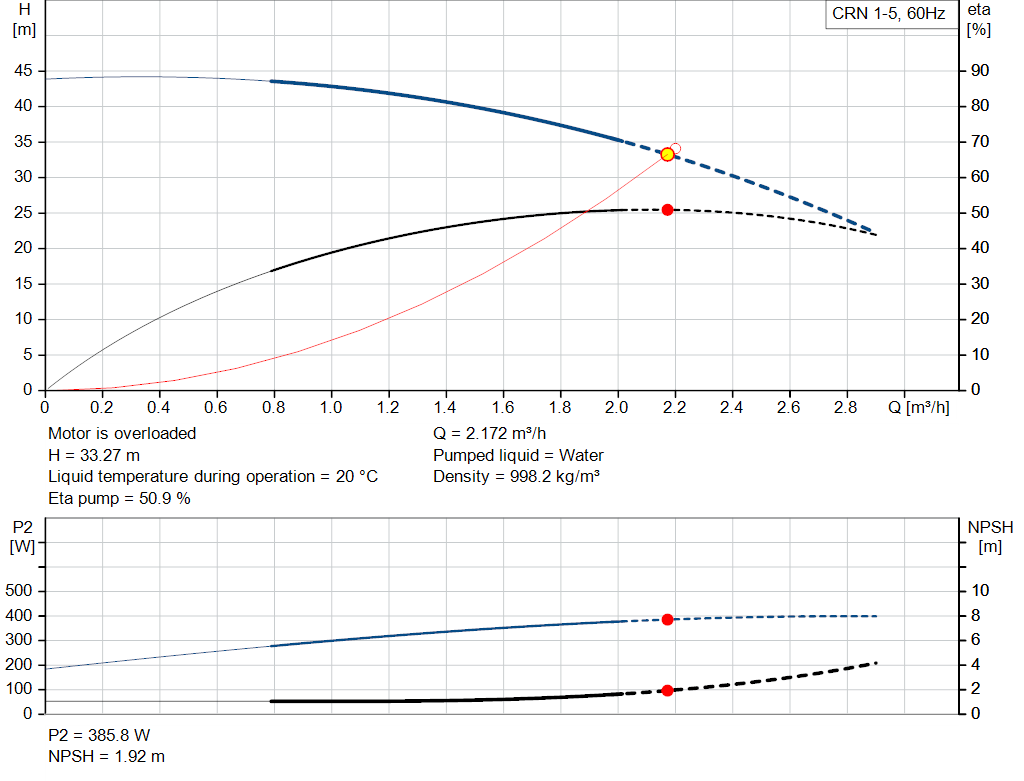

| Pump speed on which pump data are based: | 3443 rpm |
| Rated flow: | 2.2 m³/h |
| Rated head: | 34.1 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQE |
| Code for shaft seal: | HQQE |
| Approvals: | CURUS |
| Approvals for drinking water: | NSF61 |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4401 | |
| AISI 316 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 40 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 120 °C |
| 25 bar / -20 °C | |

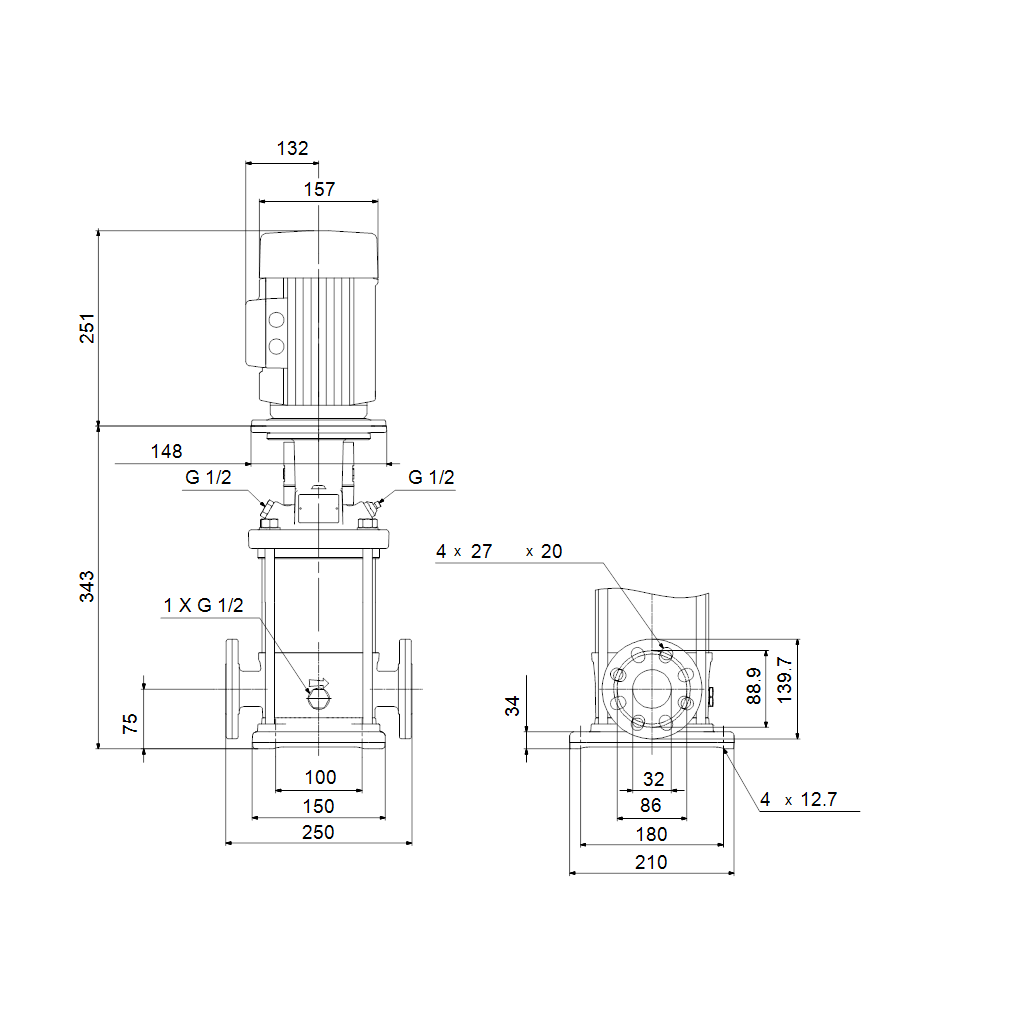

| Type of connection: | DIN / ANSI / JIS |
| Size of inlet connection: | DN 25/32 |
| 1 1/4 inch | |
| Size of outlet connection: | DN 25/32 |
| 1 1/4 inch | |
| Pressure rating for connection: | PN 25 |
| Flange rating inlet: | 300 lb |
| Flange size for motor: | 56C |
| Electrical data: | |
| Motor standard: | NEMA |
| Motor type: | BALDOR |
| Rated power - P2: | 0.37 kW |
| Power (P2) required by pump: | 0.37 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 1 x 115/230 V |
| Service factor: | 1.60 |
| Rated current: | 7.4/3.7 A |
| Rated speed: | 3450 rpm |
| IE efficiency: | 62% |
| Motor efficiency at full load: | 62 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | IP54 |
| Insulation class (IEC 85): | B |
| Motor No: | 85700002 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Net weight: | 26.8 kg |
| Gross weight: | 31.7 kg |
| Shipping volume: | 0.14 m³ |
