MS4000 ARBSWLMXT4 [7C332705]
MS4000 ARBSWLMXT4 [7C332705]
Grundfos
Preço normal
€1.885,60 EUR
Preço normal
€2.357,00 EUR
Preço de saldo
€1.885,60 EUR
Preço unitário
/
por
Price excluding VAT
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha

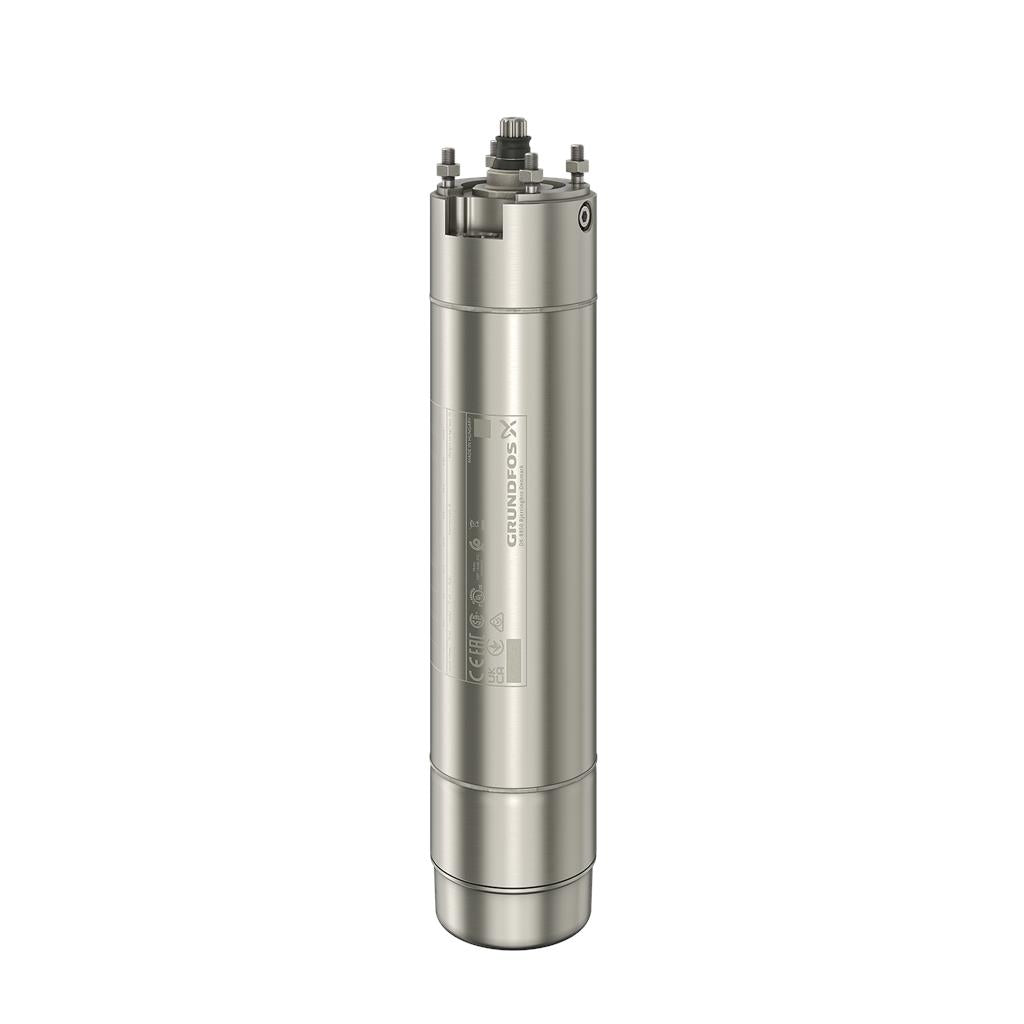

Motor de 3 fases, encamisado com protecção contra a areia, rolamentos lubrificados por líquido e diafragma de equalização de pressão.
Specs Table
| Liquid: | |
| Liquid temperature range: | -15 .. 40 °C |
| Technical: | |
| Approvals for motor: | CE,EACMOROCCO,UKCA |
| Model: | C |
| Motor version: | T40 |

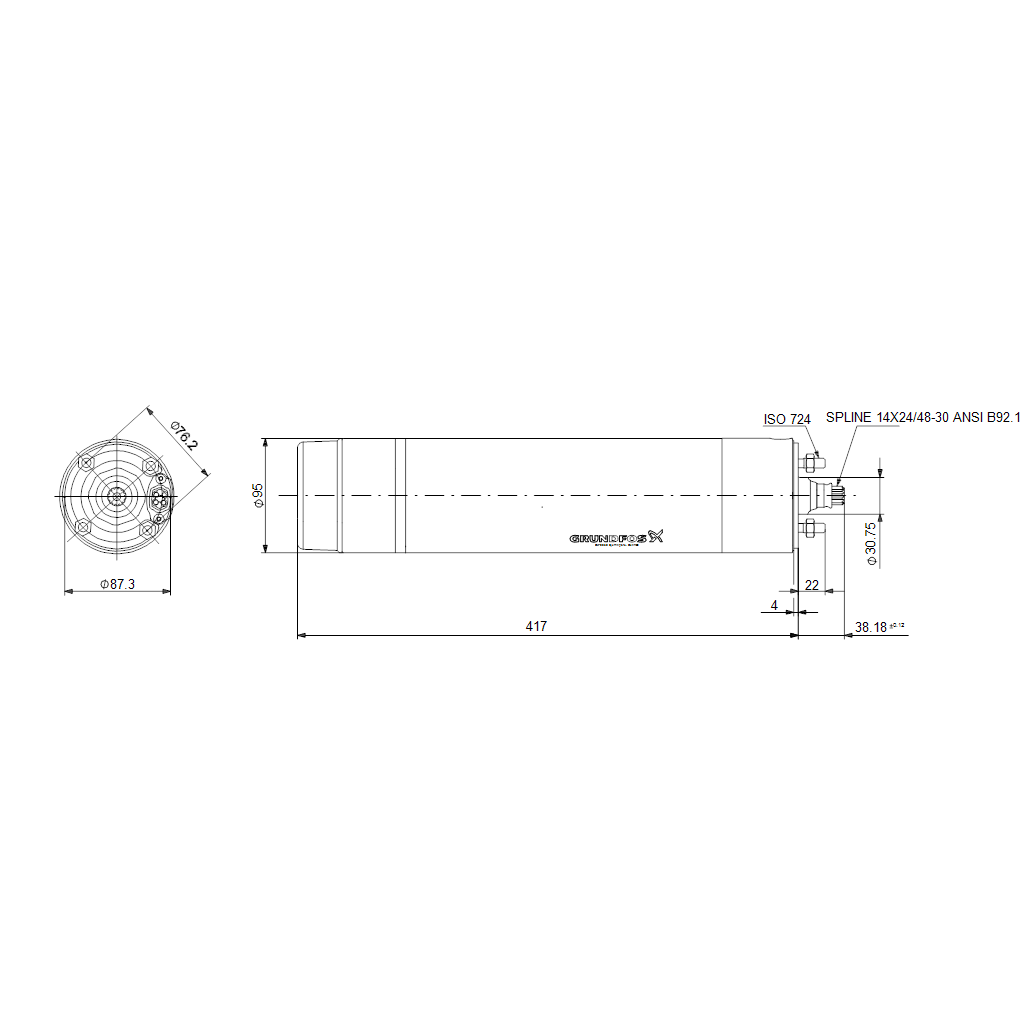

| Specification for shaft end: | SPLINE 14X24/48-30 ANSI B92.1 |
| Materials: | |
| Motor: | Stainless steel |
| EN 1.4539 | |
| AISI 904L | |
| Shaft seal: | SiC/SiC |
| Installation: | |
| Maximum ambient pressure: | 60 bar |
| Thread standard: | ISO 724 |
| Motor diameter: | 4 inch |

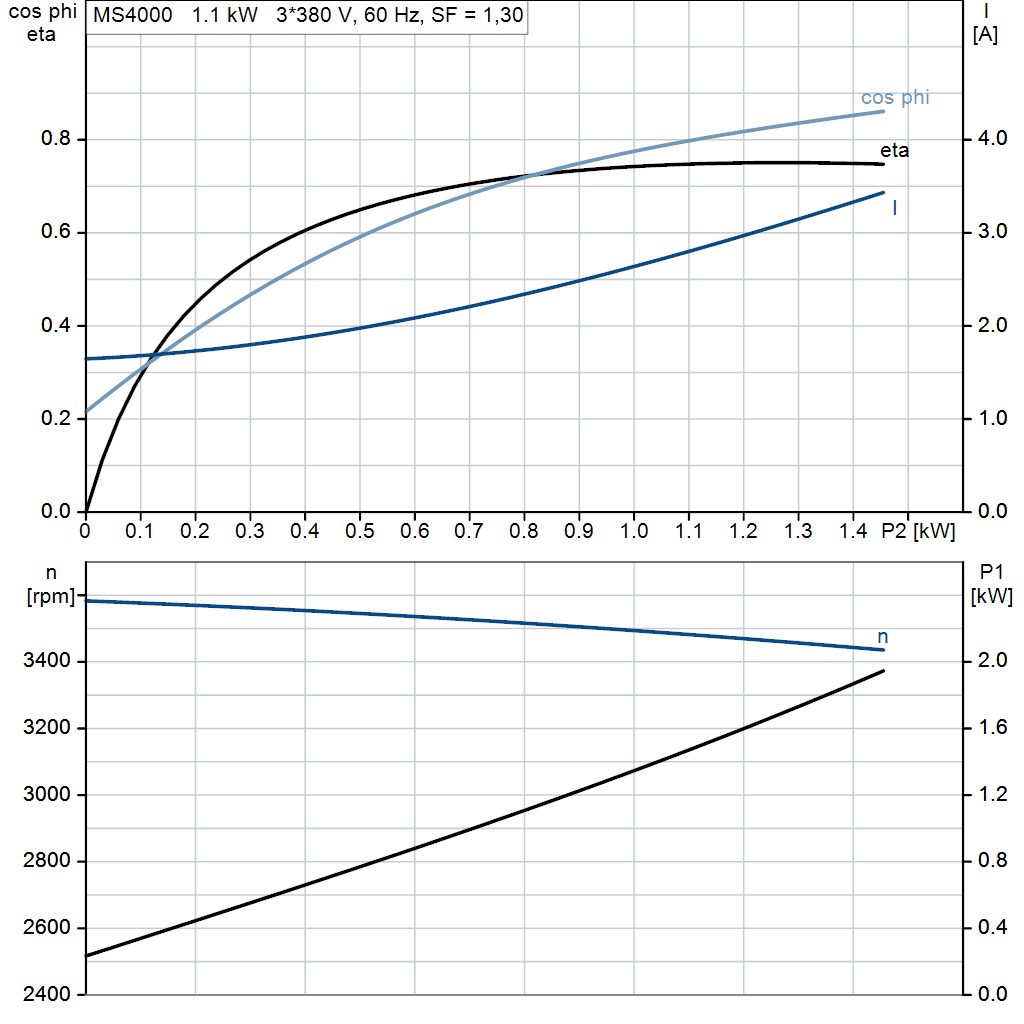

| Electrical data: | |
| Motor type: | MS4000 |
| Rated power - P2: | 1.1 kW |
| Mains frequency: | 60 Hz |
| Rated voltage: | 3 x 380-400-415 V |
| Voltage tolerance: | +6/-10 % |
| Service factor: | 1.30 |
| Rated current: | 3-3.1-3.2 A |
| Maximum current consumption - service factor: | 3.7-3.7-3.7 A |
| Starting current: | 570-590-600 % |
| Cos phi - power factor: | 0.8-0.75-0.71 |
| Rated speed: | 3480-3500-3500 rpm |
| Speed - service factor: | 3480-3460-3470 rpm |
| Rated full-load torque: | 3-3-3 Nm |
| Locked-rotor torque: | 190-210-230 % |
| Breakdown torque: | 9.1-10.3-11.1 Nm |
| Moment of Inertia: | 0.001 kg m² |
| Maximum axial load: | 225 kg |

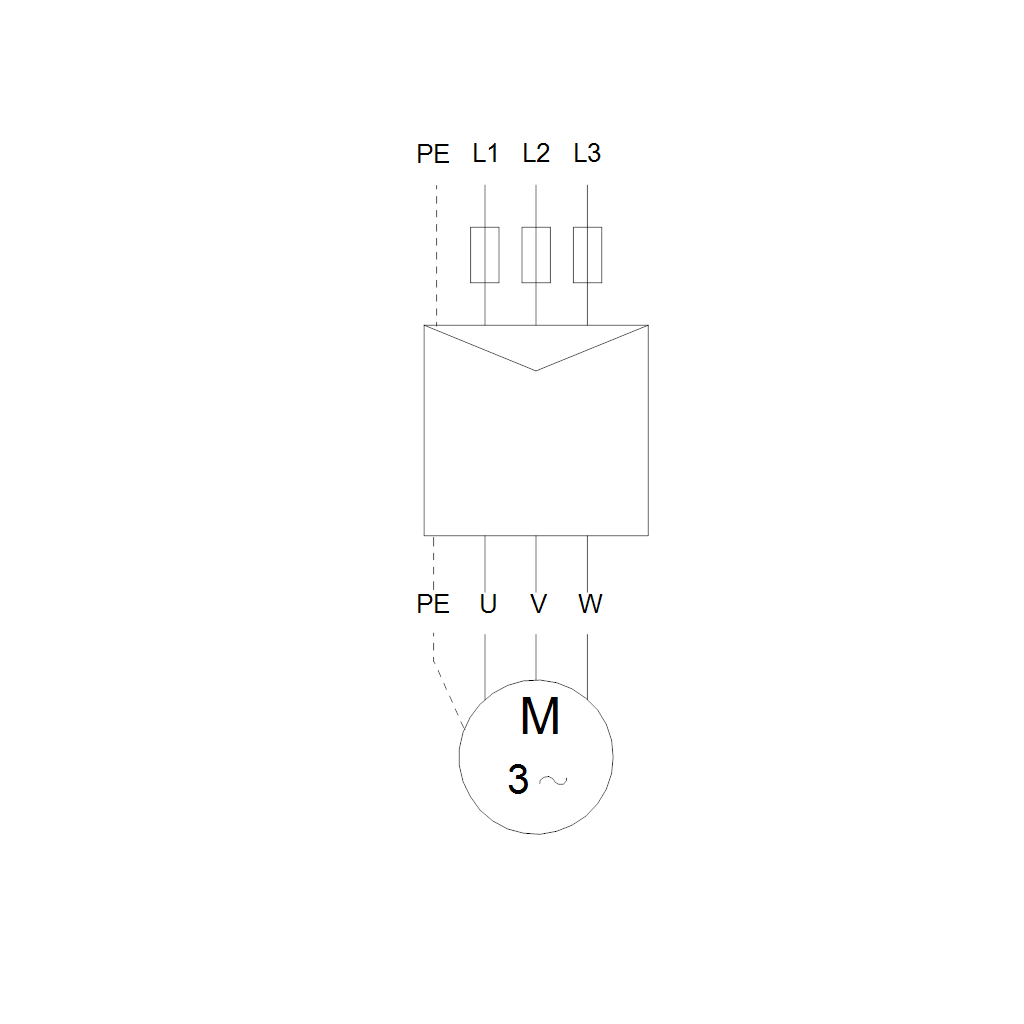

| Method of start: | Direct-on-line (DOL) |
| Enclosure class (IEC 34-5): | IP68 |
| Insulation class (IEC 85): | F |
| Built-in motor protection: | NONE |
| Thermal protection: | External |
| Built-in temp. transmitter: | No |
| Winding resistance: | 11.500 Ohm |
| Windings: | Enameled |
| Others: | |
| Net weight: | 14 kg |
| Gross weight: | 14 kg |
| Shipping volume: | 0.004 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 85015220 |
| Environmental approvals for motor: | WEEE |
