CRI 1S-2 A-P-A-V-HQQV [96527660]
CRI 1S-2 A-P-A-V-HQQV [96527660]
Grundfos
Preço normal
€1.198,40 EUR
Preço normal
€1.498,00 EUR
Preço de saldo
€1.198,40 EUR
Preço unitário
/
por
Price excluding VAT
Envio calculado na finalização da compra.
Não foi possível carregar a disponibilidade de recolha

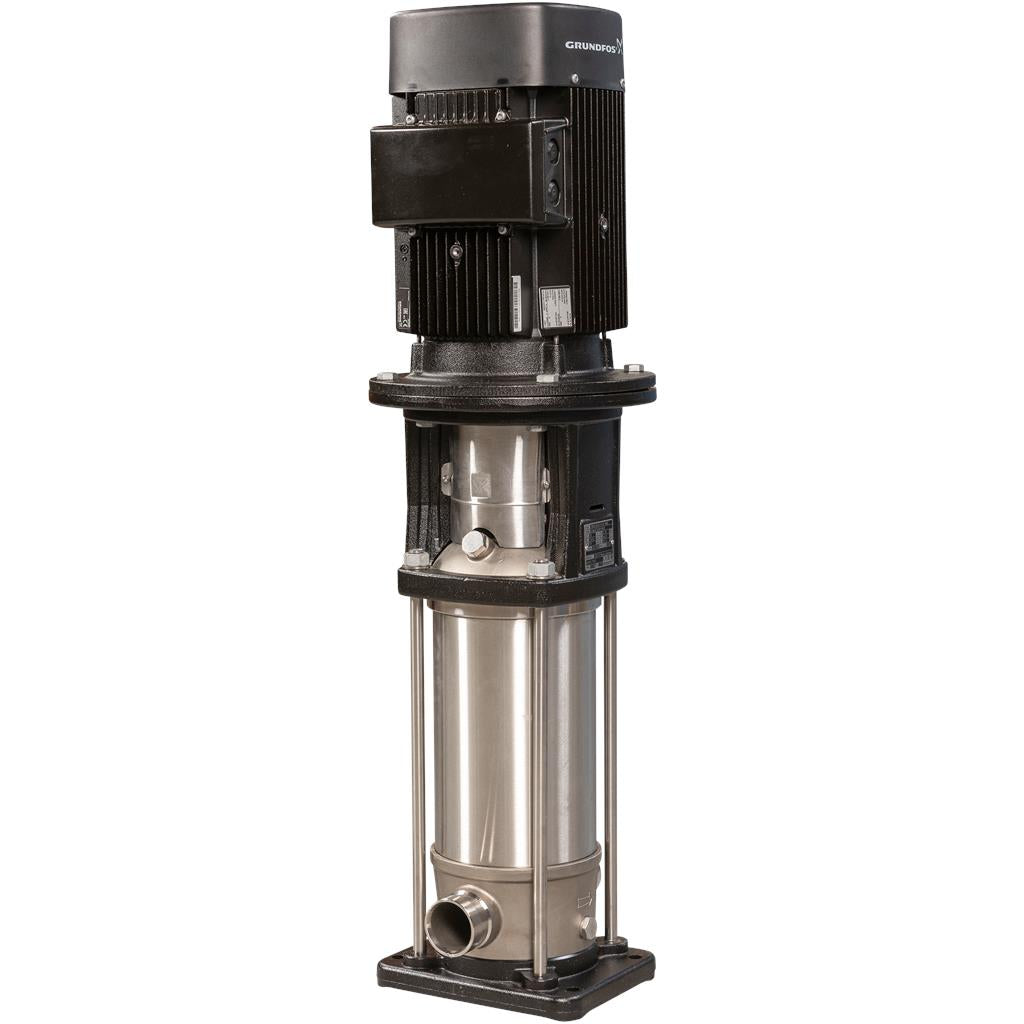

Bomba centrífuga vertical multicelular com orifícios de aspiração e descarga no mesmo nível (inline). Os materiais da bomba em contacto com o líquido são em aço inoxidável. A transmissão de potência realiza-se através de um acoplamento bipartido. A ligação da tubagem é realizada através de acoplamentos PJE (Victaulic®). A bomba está equipada com um motor assíncrono auto-ventilado de 3 fase(s), montado numa base.
Specs Table
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | -20 .. 90 °C |
| Selected liquid temperature: | 20 °C |
| Density: | 998.2 kg/m³ |
| Technical: | |

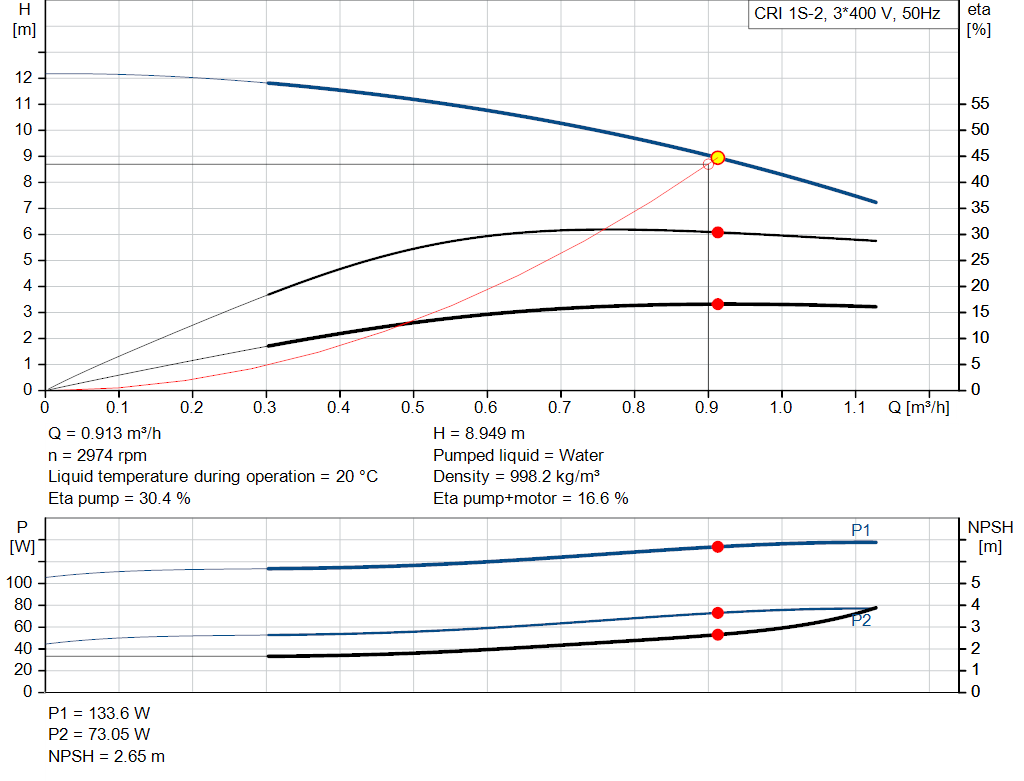

| Pump speed on which pump data are based: | 2873 rpm |
| Rated flow: | 0.9 m³/h |
| Rated head: | 8.7 m |
| Pump orientation: | Vertical |
| Shaft seal arrangement: | Single |
| Primary shaft seal: | HQQV |
| Code for shaft seal: | HQQV |
| Approvals: | CE,EAC,UKCA,SEPRO |
| Approvals for drinking water: | WRAS |
| Curve tolerance: | ISO9906:2012 3B |
| Materials: | |
| Base: | Stainless steel |
| EN 1.4408 | |
| AISI 316 | |
| Impeller: | Stainless steel |
| EN 1.4301 | |
| AISI 304 | |
| Bearing: | SIC |
| Installation: | |
| Maximum ambient temperature: | 60 °C |
| Maximum operating pressure: | 25 bar |
| Max pressure at stated temp: | 25 bar / 90 °C |
| 25 bar / -20 °C | |
| Type of connection: | PJE |
| Size of inlet connection: | DN 32 |
| 1 1/4 inch | |
| Size of outlet connection: | DN 32 |
| 1 1/4 inch | |
| Pressure rating for connection: | PN 50 |
| Flange size for motor: | FT85 |

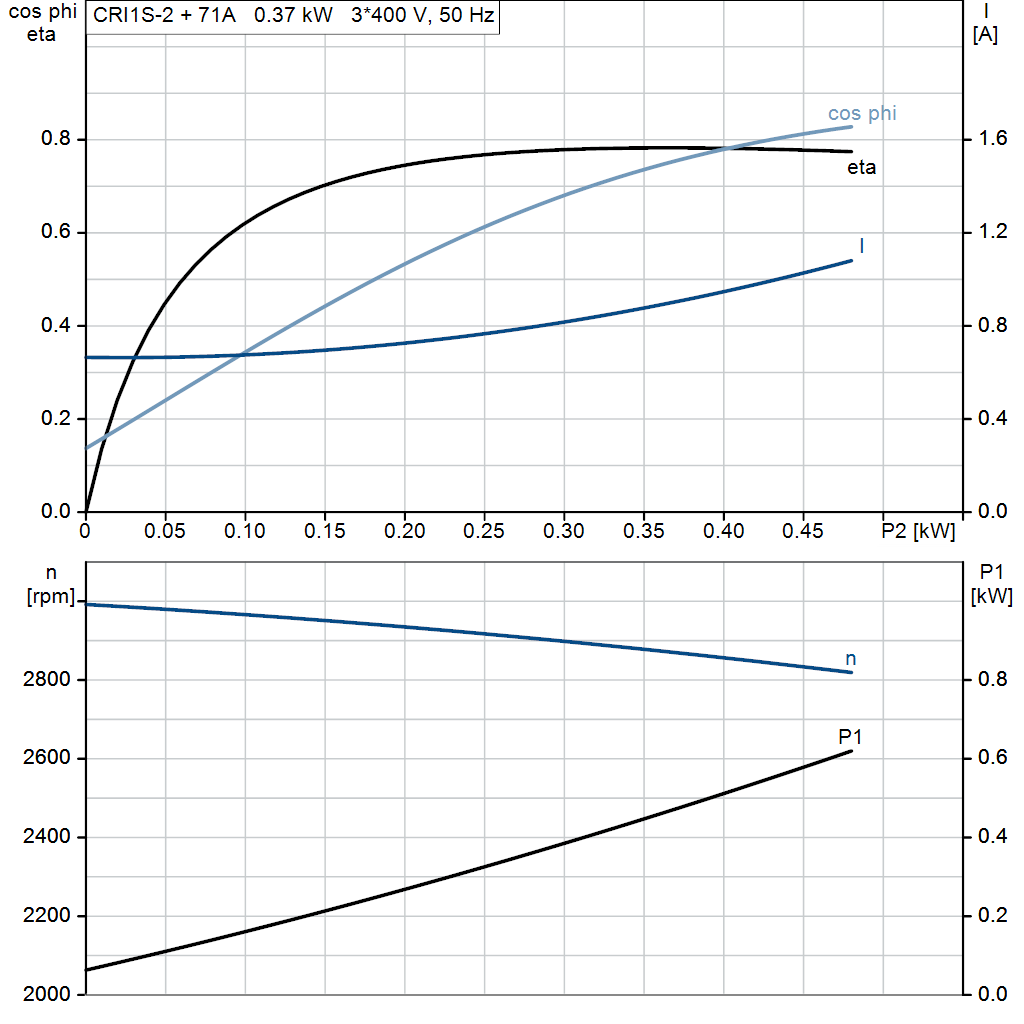

| Electrical data: | |
| Motor standard: | IEC |
| Motor type: | 71A |
| Rated power - P2: | 0.37 kW |
| Power (P2) required by pump: | 0.37 kW |
| Mains frequency: | 50 Hz |

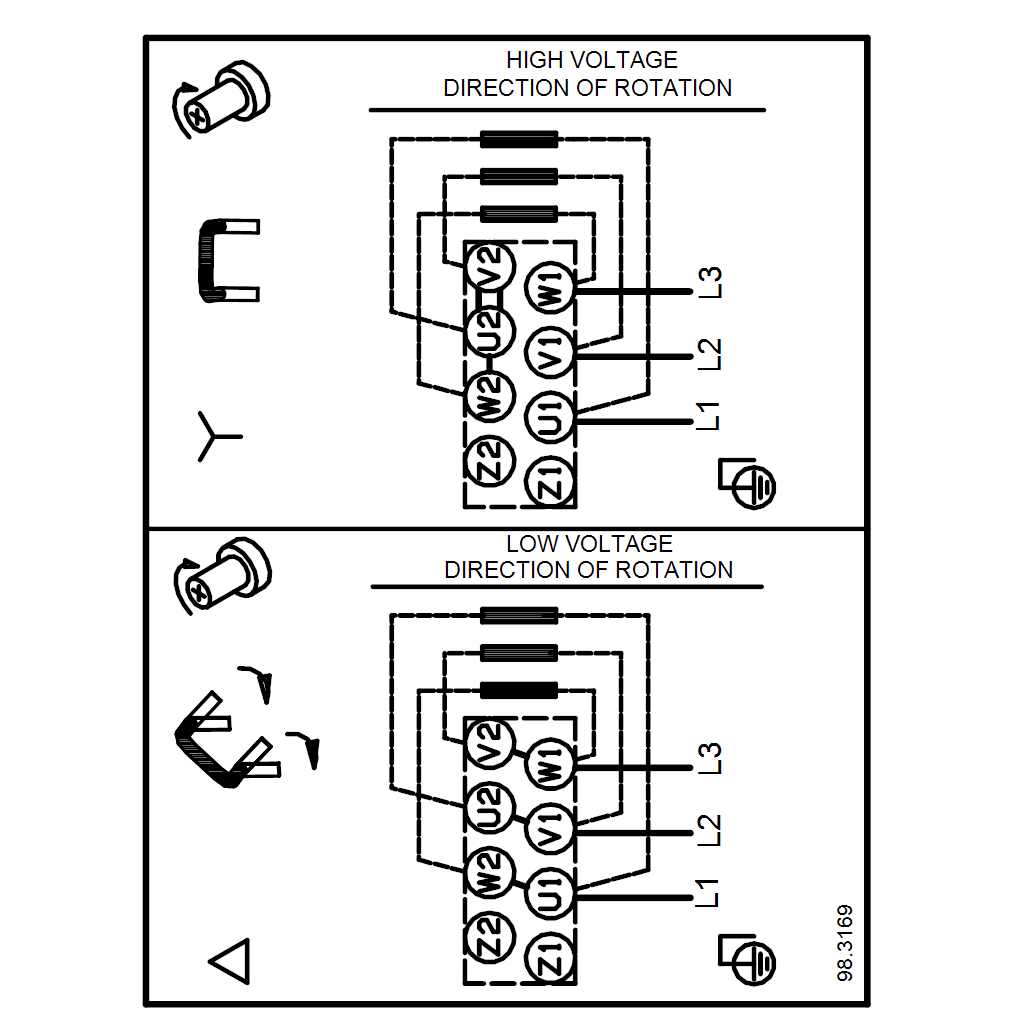

| Rated voltage: | 3 x 220-240D/380-415Y V |
| Rated current: | 1.74/1.00 A |
| Starting current: | 490-530 % |
| Cos phi - power factor: | 0.80-0.70 |
| Rated speed: | 2850-2880 rpm |
| IE Efficiency class: | IE3 |
| Motor efficiency at full load: | 73.8 % |
| Motor efficiency at 3/4 load: | 79.0-76.5 % |
| Motor efficiency at 1/2 load: | 75.5-71.5 % |
| Number of poles: | 2 |
| Enclosure class (IEC 34-5): | 55 Dust/Jetting |
| Insulation class (IEC 85): | F |
| Motor No: | 85805102 |
| Controls: | |
| Frequency converter: | None |
| Others: | |
| Terminal box position: | 6 |
| Minimum efficiency index, MEI ≥: | 0.54 |
| Net weight: | 16.4 kg |
| Gross weight: | 19.1 kg |
| Shipping volume: | 0.054 m³ |
| Country of origin: | HU |
| Custom tariff no.: | 84137075 |
